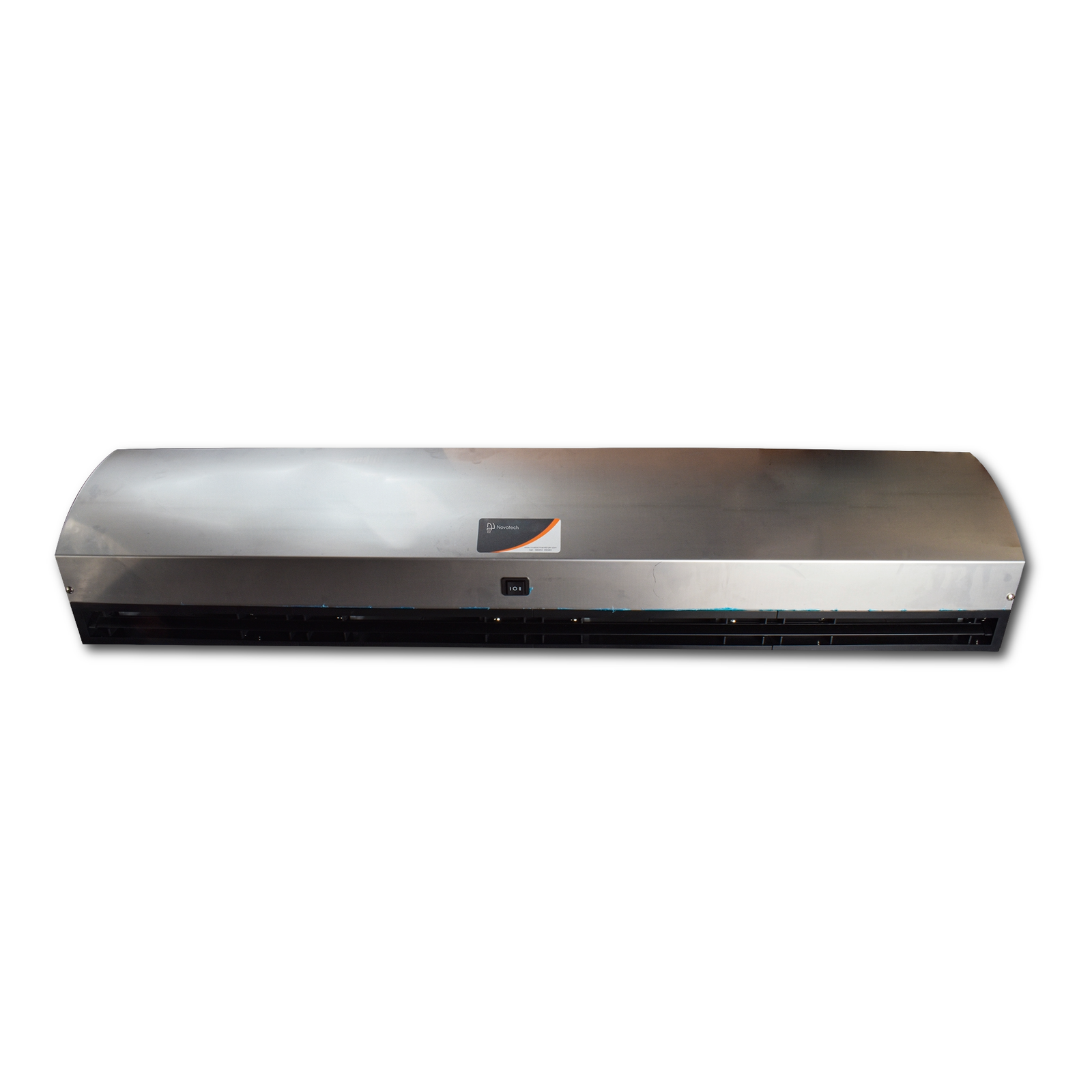

Stainless Steel Air Curtain | Model: NTACSS
Air Velocity
21 m/s Airflow
Air Output
829-1490 CFM
Easy Installation
Single-Phase Power
Noise level
50-72 dB(A)
Dust & Insect Rejection
75% Protection
Novatech’s ss air curtain is a distinguished and renowned device. This ss air curtain comes with a stainless steel casing which helps in resisting dust from travelling inside the machine. The casing also helps with corrosion resistance and fire. The device is easy to maintain and clean.
The ss air curtain meets international standards due to its high quality and capacity.
The blowers on this SS air curtain also have high-quality ABS to ensure overload protection, toughness, long life span and a noise-proof experience.
NTACSS is available in 4 models that come with multiple installation specifications. These sub-models are available with body dimensions of 3,4,5, and 6 feet.
The device has a high and low airspeed switch option. It helps maintain a suitable indoor temperature and prevents heat from outside from entering the premises. It also helps in maintaining a dust-free and fly-free indoor atmosphere. This air curtain can be installed in private as well as public spaces.
| Model | Dimensions |
|---|---|
| AIR CURTAIN MODEL: NTACSS3 | Dimension : 3 ft |
| AIR CURTAIN MODEL: NTACSS4 | Dimension : 4 ft |
| AIR CURTAIN MODEL: NTACSS5 | Dimension : 5 ft |
| AIR CURTAIN MODEL: NTACSS6 | Dimension : 6 ft |
| Parameters | NTACSS3 | NTACSS4 | NTACSS5 | NTACSS6 |
|---|---|---|---|---|
| Dimension(mm): | 900x230x212 | 1200x230x212 | 1500x230x212 | 1800x230x212 |
| Max. Air Velocity at Nozzle: | 21 m/s | 21 m/s | 21 m/s | 21 m/s |
| Noise Level dB(A) | 50-70 dB(A) | 50-70 dB(A) | 50-70 dB(A) | 50-70 dB(A) |
| No. of Blowers | 3 | 4 | 5 | 6 |
| No. of Motors: | 2 | 2 | 3 | 3 |
| No. of Shafts: | 1 Single + 1 Double | 2 Double | 1 Single + 2 Double | 3 Double |
| Power (W) | 410 W | 560 W | 700 W | 820 W |
| Phase: | Single | Single | Single | Single |
| RPM (Max/Min) | 2700/1200 | 2700/1200 | 2700/1200 | 2700/1200 |
| Blower Type | ABS | ABS | ABS | ABS |
| CFM: | 825 | 1100 | 1380 | 1490 |
| % Insect/ Dust Rejection | 75% | 75% | 75% | 75% |
| Weight Kgs: | 19 | 22 | 26 | 32 |
