Category

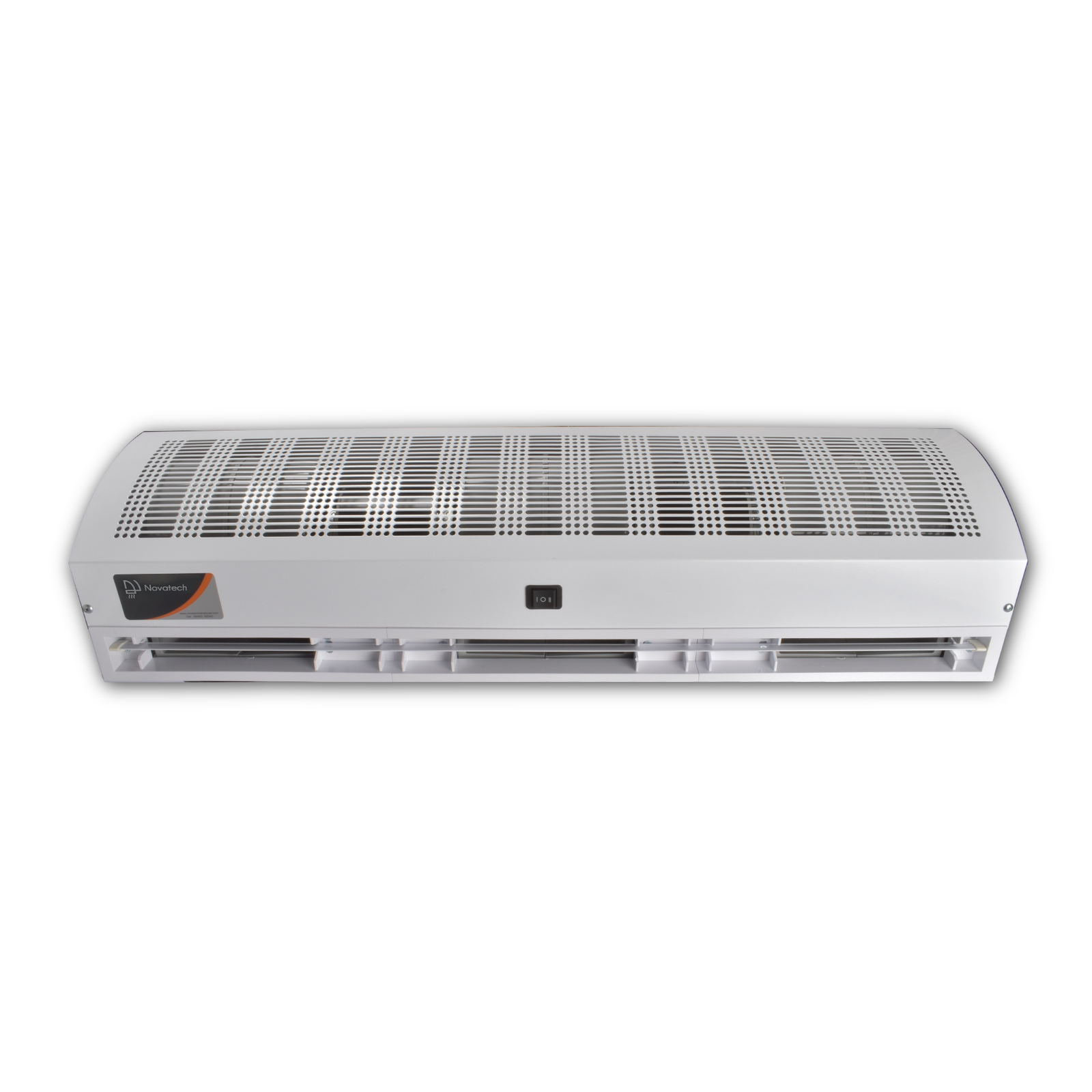

Air Curtain Commercial | Model: NTAC

Drying Time

Less than 15 secs

Sleek Finish

ABS body in white

Power efficient

1000 W max

Noise level

65 dB(A)

Hygenic

Touch free sensor activation

We present the sleekest air curtain in the market. This stylish air curtain comes with an all-metallic casing that is built with high fire resistance.

Through our residential air curtain manufacturers, we highlight this device’s superior qualities such as its reliable design which can run for 5000 hours continuously, single switch button to control high and low speeds, and its horizontal air-centrifugal system. In our air curtain commercial, we also display the product’s compact design which is easy to install, clean and maintain.

Our device comes with an overheating protection program that automatically cuts off the power supply if the temperature exceeds 145º C.

The motor starts again when the temperature drops below 145º C. This device is a perfect home solution because it disallows any dust particles to enter the home premises, thereby, keeping your home clean and hygienic.

The Air Curtain is entrifugal type forward – Bending blade wheel construction, fitted with efficient Volute design, rending the capacity of the curtain for the best result. This type of wheel is highly efficient, less noisy, with large air volume (maximum air speed reaching 21m/s). High velocity of this air curtain is unmatched by any other air curtain.

It can be installed at variable heights upto 10 feet.

ModelDimensions
AIR CURTAIN MODEL: NTAC3Dimension: 3 ft
AIR CURTAIN MODEL: NTAC4Dimension: 4 ft
AIR CURTAIN MODEL: NTAC5Dimension : 5 ft
AIR CURTAIN MODEL: NTAC6Dimension : 6 ft



ParametersNTAC3NTAC4NTAC5NTAC6
Dimension(mm):900x230x2121200x230x2121500x230x2121800x230x212
Max. Air Velocity at Nozzle:21 m/s21 m/s21 m/s21 m/s
Noise Level dB(A)50-70 dB(A)50-70 dB(A)50-70 dB(A)50-70 dB(A)
No. of Blowers3456
No. of Motors:2233
No. of Shafts:1 Single + 1 Double2 Double1 Single + 2 Double3 Double
Power (W)410 W560 W700 W900 W
Phase:SingleSingleSingleSingle
RPM (Max/Min)2700/12002700/12002700/12002700/1200
Blower TypeABSABSABSABS
CFM:825110013801490
% Insect/ Dust Rejection75%75%75%75%
Weight Kgs:19222632
